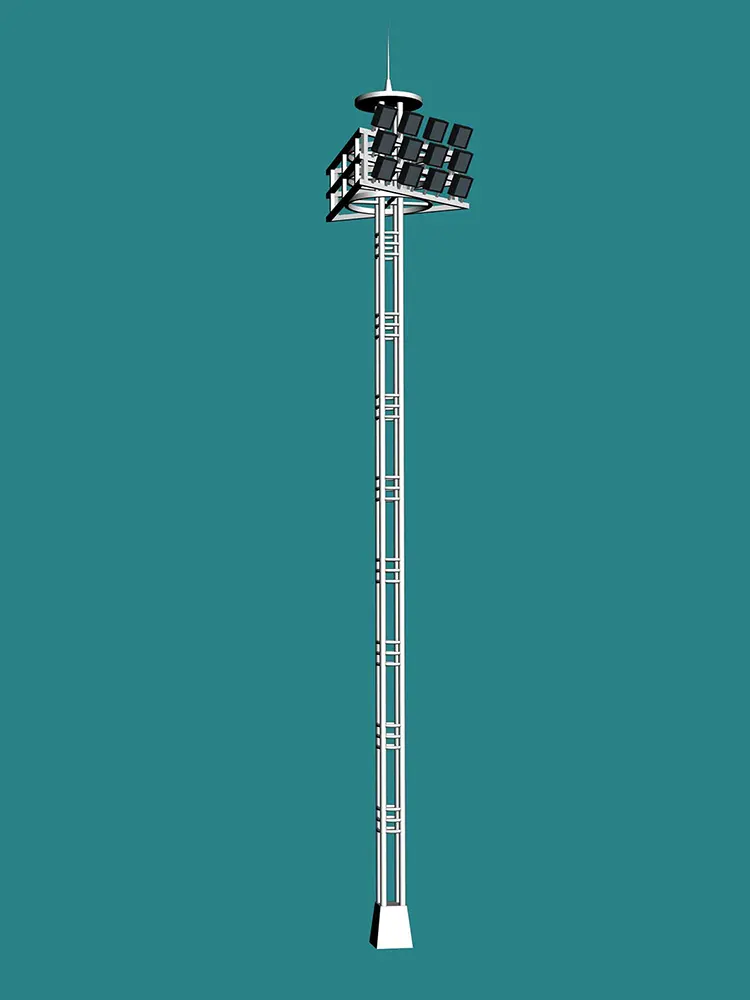

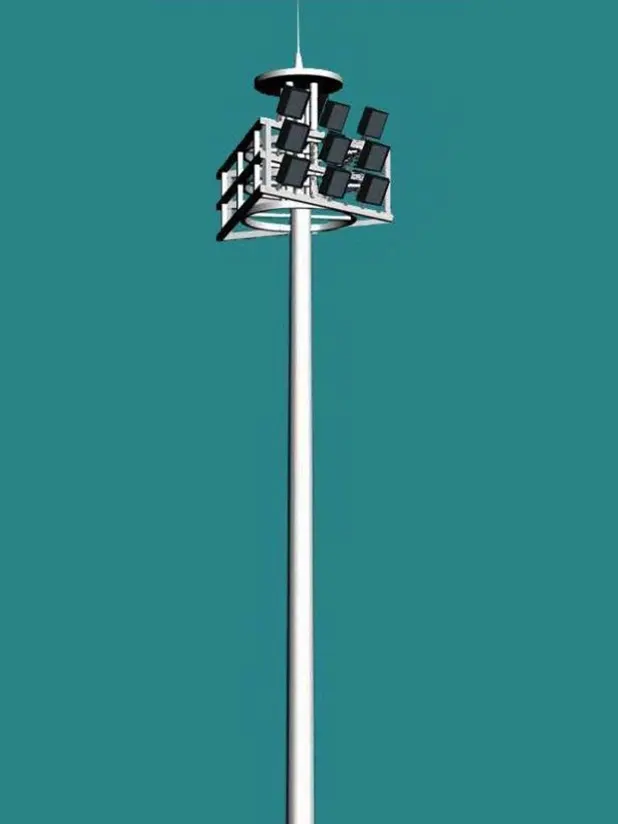

GG-008 (High pole lights)

We could offer the customization according to your demands or design paper.

Origin:SenFa,China

Material:High-quality aeronautical aluminum

Protection Rating:IP66 or higher

Power Range:120W-2000W

Rated Voltage:220V

LED Chips:Philips 3030/5050

LED Driver:Philips/MeanWell/Senfa

Luminous Flux:120-200 Lm/W

Conversion Efficiency: >95%

Color Temperature:3000-6500K (Pure White/Warm White)

Operating Temperature:-40°C to +50°C

Lifespan:50,000+ hours

Material:Steel, Q235A、Q235B/A36、Q345B/A572、Q460、SS400、SS490、ASTM573 GR50/GR65、ST52

Height Range:15m-50m

Pole Thickness:4mm-16mm

Welding Method:Automatic Submerged Arc Welding

Corrosion Protection:Hot-Dip Galvanization (Inside & Outside), Zinc Coating Thickness ≥86μm

Surface Finish:Electrostatic Spraying, Coating Thickness ≥100μm

Wind Resistance:≥36.9 m/s

Earthquake Resistance:10 Level

Shape Type:Tapered Pole, Octagonal Pole, Square Pole, Equal-Diameter Pole

Finish Color:Customizable

Pole adopts a sectional plug-in connection

Full hot-dip galvanization (inside/outside) for corrosion resistance

Electrostatic Spraying

Lifting/ladder-equipped

rain cowling

Lifting Mechanism:Internal electric winch,galvanized steel cables

Control system:automatic control electrical appliances, main cables and auxiliary cables

Optional Configurations:anti-fall, explosion-proof and dual lifting

+86 13852559448

Pricing

1. Select a product style/model number.

2. Provide specifications (pole height, lamp wattage, and other requirements).

3. Receive a customized quotation.

If you unsure of specific requirements, contact us to share your application environment (e.g., Installation location (roads/squares), road width/square area, local sunshine hours, and brightness requirements) for a tailored lighting solution.

Customization Services

We offer the customization according to your specific requirements or design paper，ensuring optimal balance between functionality, aesthetics, and energy efficiency.
