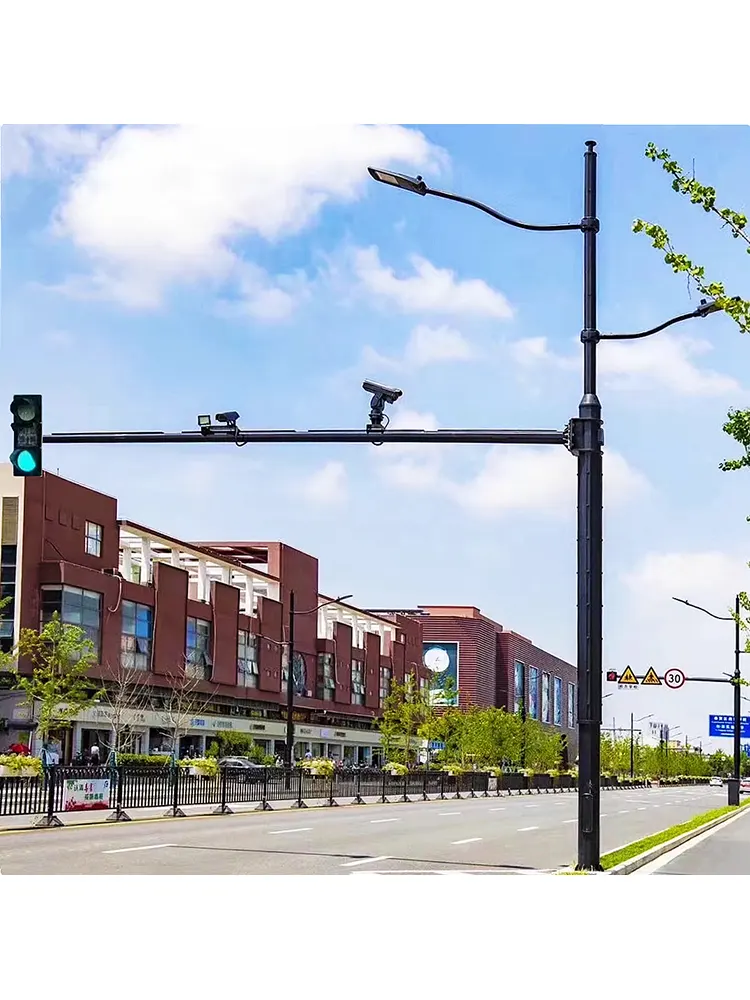

DGN-01 (Shared traffic street lights)

We could offer the customization according to your demands or design paper.

Origin:SenFa,China

Traffic Lights Lens Diameter:300mm / 400mm

Housing Material:Die-cast Aluminum / Polycarbonate

Protection Rating:IP66 or higher

Display Configuration: Arrow-Type / Full-Screen

LED Color:Red / Yellow / Green

LED Chips:Philips 3030/5050

LED Driver:Philips/MeanWell/Senfa

Power Range:<20W

Rated Voltage:12V/24V/156-285V，50Hz

Traffic Signs Construction:Aluminum Substrate with Reflective Sheeting

Aluminum Thickness:1.2mm–4mm

Reflective Film Class:I, II, III, IV, V (ASTM D4956)

Operating Temperature:－40℃～＋70℃

Material:Steel, Q235A、Q235B/A36、Q345B/A572、Q460、SS400、SS490、ASTM573 GR50/GR65、ST52

Vertical Pole Height Range:4m–15m

Crossarm Length Range:1m–18m

Connection Type:Flange-Mounted

Pole Thickness:3mm-16mm

Welding Method:Automatic Submerged Arc Welding

Corrosion Protection:Hot-Dip Galvanization (Inside & Outside), Zinc Coating Thickness ≥86μm

Surface Finish:Electrostatic Spraying, Coating Thickness ≥100μm

Wind Resistance:≥36.9 m/s

Earthquake Resistance:10 Level

Shape Type:Tapered Pole, Octagonal Pole, Square Pole, Equal-Diameter Pole, Frame type composite post

Finish Color:Customizable

Reflective Film Class:I, II, III, IV, V (ASTM D4956)

+86 13852559448

Pricing

1. Select a product style/model number.

2. Provide specifications (pole height, lamp wattage, and other requirements).

3. Receive a customized quotation.

If you unsure of specific requirements, contact us to share your application environment (e.g., Installation location (roads/squares), road width/square area, local sunshine hours, and brightness requirements) for a tailored lighting solution.

Customization Services

We offer the customization according to your specific requirements or design paper，ensuring optimal balance between functionality, aesthetics, and energy efficiency.
